Looking for enclosed cabinets. Arrow Fleetline models include a variety of components and design elements that add convenience and protection while improving operator performance.
Each Fleetline bobtail unit is designed from the ground up with the end user in mind. Our bobtails begin their fabrication process with computer aided design (CAD), and utilize computer aided manufacturing (CAM) to enhance the final fit and finish. Arrow Tank & Engineering’s exclusive weight distribution software assures a safe and reliable bobtail by matching each vessel to the selected chassis. Results from these innovations are apparent in the performance of each completed bobtail.
Arrow Fleetline models include a variety of components and design elements that add convenience while improving operator performance. Examples include the following standard equipment:
A centrally located power distribution center (PDM) is at the core of the system for powering electronic devices onboard.
Arrow also has electrical wiring diagrams for all our lighting systems and chassis interface. The diagrams label each chassis circuit number, location of the splice and when necessary amperage draw and balance of load remaining.
Another “nice touch” on Arrow Fleetline bobtails is drip rails that protect door openings from rain and water runoff. Side and rear compartments feature continuous full length drip rails. A second rail is attached to the hatchback door for added protection from surge during down pours and when door is opened.

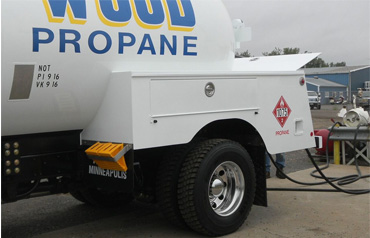

Arrow Fleetline models come standard with 2 Drop Panel Doors (one each side) for single axle units and 4 drop panel doors (two each side) for tandem axle units. Other fabricators may include only one compartment on one side only and in some instances, no cabinets whatsoever. Polished stainless steel D-ring handles and slam lock hardware finish the door assemblies.
You ask your Bobtails to work in the harshest environments mother nature can offer. The lighting system is an extremely high priority when it comes to safety and reliability.
Standard LED light fixtures draw minimal amperage and illuminate brighter than incandescent lamps. Wires are molded into a PVC jacketed harness and plug-in connections at each junction are sealed with shrink tube for superior protection from the elements.
Standard lighting components include high mount LED stop and turn lamps as extra measure of safety to warn following vehicles of your intended travel. This is especially helpful when making left handed turns on roads with 2-way traffic (opposing lanes).
Stadium type work lights cast a combined 200 watts of power to provide excellent visibility darkness. Additional assistance is provided via dual 50 watt docking lights mounted outside rear cabinet with 55° projection angle.
The hose reel is equipped with a GuideMaster hose roller, ultra low temp hose with hose end swivel and quick acting delivery end valve. Additionally, the hose reel is mounted to the deck between rubber isolation blocks to improve cleanliness.
The secret to our success begins with vessel fabrication that features internal pump discharge (IPD) and internal bypass piping if desired. Most notable benefits are improved safety, cleaner installations, and excellent corrosion protection. Future chassis remounts are simple due to minimal exterior piping.
To enhance flow the pump discharge/re-entry piping is accomplished using a single piece of die formed pipe. Flanged connections are used throughout to improve safety, serviceability, and minimize leaks. Smooth bends enhance flow and reduce the equivalent length of pipe by 70% when compared to threaded elbows. Lastly, we use 2” piping all the way from pump to hose reel inlet to take full advantage of volume.
Volume + Unrestricted Flow = Top Performance & Longevity
Arrow’s Fleetline series of propane trucks has a variety of helpful optional features available. Paint, graphics, extra lighting, GPS, cab laptop mounts just to name a few. Our assemblers and technicians will make certain your selections are professionally installed to the highest standards. Check out the options below and begin making your list.
Do your trucks deliver to remote locations, dangerous places and industrial parks? there is nothing like being able to flood an area with light to eliminate trip hazards and offset shadows while you’re working.
Computer generated, CAD cut, high performance vinyl graphics and lettering provide valuable marketing impact, contact information and make your trucks look good. Matching Graphics give your fleet a great look and present a consistent look to your customers.
Does your company have a fleet of trucks that you want to keep all the same for a consistant look? Not a problem. Arrow has a fully equipped paint shop.
Over the past decade chassis frame heights have drastically increased. This trend has a direct correlation to the accessibility of the spray fill connections which are now 6-12 inches higher. Optional Side Fill reduces connection height by nearly 10″.
These systems can be custom mounted in the cab of your truck. With the GPS you will never get lost. Adjustable mounts for a laptop can be installed for instant invoice and schedule updating.
Backup camera adds an extra measure of safety when positioning the bobtail for a delivery. The camera also features a built in microphone to provide the operator with superior audible senses in the cab.
Does your truck still have a lot of life left in it? Is the painted steel skirting starting to rust? Have Arrow re-skirt and remount your existing tank with new skirting on your good chassis. While they are doing that take a look at the upgrades available that add life to your truck. It will be like getting a new truck back when Arrow is done.
Upgrade from your painted steel decking to bead blasted stainless. Guaranteed to last years longer.
Change from your weather exposed deck unit to the all enclosed Fleetline skirting with cabinets that protect your equipment from the elements.
Create a new lifecycle by giving your cargo tank a new ride. Retire that old truck chassis and remount on top of a new chassis.
Cargo tank capacity has been on a steady rise over the years. What used to perform the job well is no longer adequate and inefficient. Arrow Tank & Engineering is the industry leader when it comes to adding volume to your existing tank. In most instances, stretches for 73 inch tanks yield up to 3200 gallons and 5000 gallons or more for 80 inch tanks. As part of the process, cargo tanks are updated to the latest ASME and DOT requirements. Likewise, vessel openings are typically upgraded or added to increase performance and facilitate a new piping assembly.
Take your truck from a single axle to a double or a triple.
Arrow can make it happen. Cant be without your bulk tank. We can build you a new larger tank and we can take the one you wanted to stretch.
On the rollers having 2ft added to the end. Call Arrow and have them quote a stretch for you. Find out the added volume you will gain.
